Description

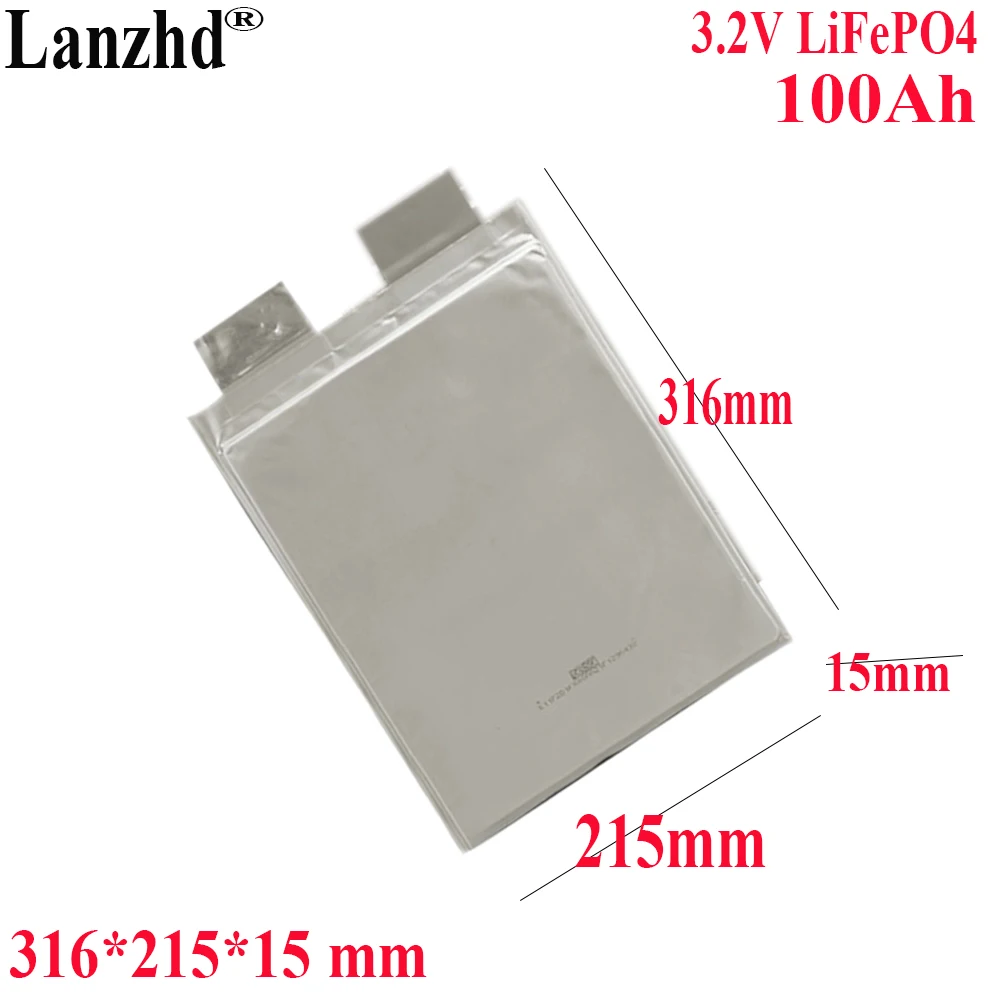

LiFePO4 100Ah 316*215*15mm 3.2V Battery Soft pack lithium iron phosphate battery power cell home energy storage large monomer
Specification :
Brand:Lanzhd
Name: LiFePO4
Model:LiFePO4 100Ah
Capacity: 100Ah
Ratio: 1C-2C
Voltage: 3.2 V
Charging cut-off voltage: 3.65V
Overall size:316*215*15mm
very:22*24mm
Internal resistance:
Protection IC technical parameters: overcharge protection 3.20V±0.05V
Over discharge protection: 2.7V±0.1V
Charging temperature: -20°C ~ 45°C
Discharge temperature: -20°C ~ +60°C
Storage temperature: -0°C to +35°C
Maximum charging current: 1C
Maximum Discharge current: 2C
Weight:1830
Promise:
100% new battery
Number of cycles: More than 2000 times
Test verification: After 1000 cycles, the capacity drops to 97%
Widely Applications:
Use For Start power supply, igniter, welding machine, model airplane, model ship, model car, scooter, toy Electric vehicle, Electric Bicycle, Tricycle, scooter, golf trolley, cart, wheelchairs, Medical instrument, Solar supply system,solar panel, energy storage, electric tools, power tools, instruments, LED lighting devices, RC toys, inverter, household appliances and emergent device area, etc.
